Understanding the Samsung SM-A528 5G PM7325: Power Management for Optimal Performance

The Samsung Galaxy A52s 5G (SM-A528) is one of the company's popular mid-range smartphones, equipped with several advanced features for an affordable price. A key part of ensuring that the device operates smoothly, efficiently, and with long-lasting battery life is its Power Management Integrated Circuit (PMIC). In this case, the Samsung A52s 5G uses the PM7325 chip to handle power distribution across the device. Let’s explore the importance of this chip and how it works to power the device's various components.

The Role of the PMIC (Power Management Integrated Circuit)

At its core, a PMIC is a crucial component in modern smartphones. Its primary job is to distribute power from the battery to different components of the phone, ensuring each part gets the required voltage for its operation. It also ensures efficient energy usage, helping the device run smoothly while preventing overuse of battery resources. In smartphones, a single PMIC often manages everything from the system-on-chip (SOC) to various smaller components like DRAM, eMMC, displays, and other peripherals.

In the case of the Samsung SM-A528 5G, the PM7325 is the main PMIC that regulates power distribution to most of the device’s primary circuits. The design of this power management system is carefully laid out to ensure the correct amount of voltage is sent to the various parts of the phone, without wasting energy or damaging sensitive components.

Overview of the PM7325 Circuit Diagram

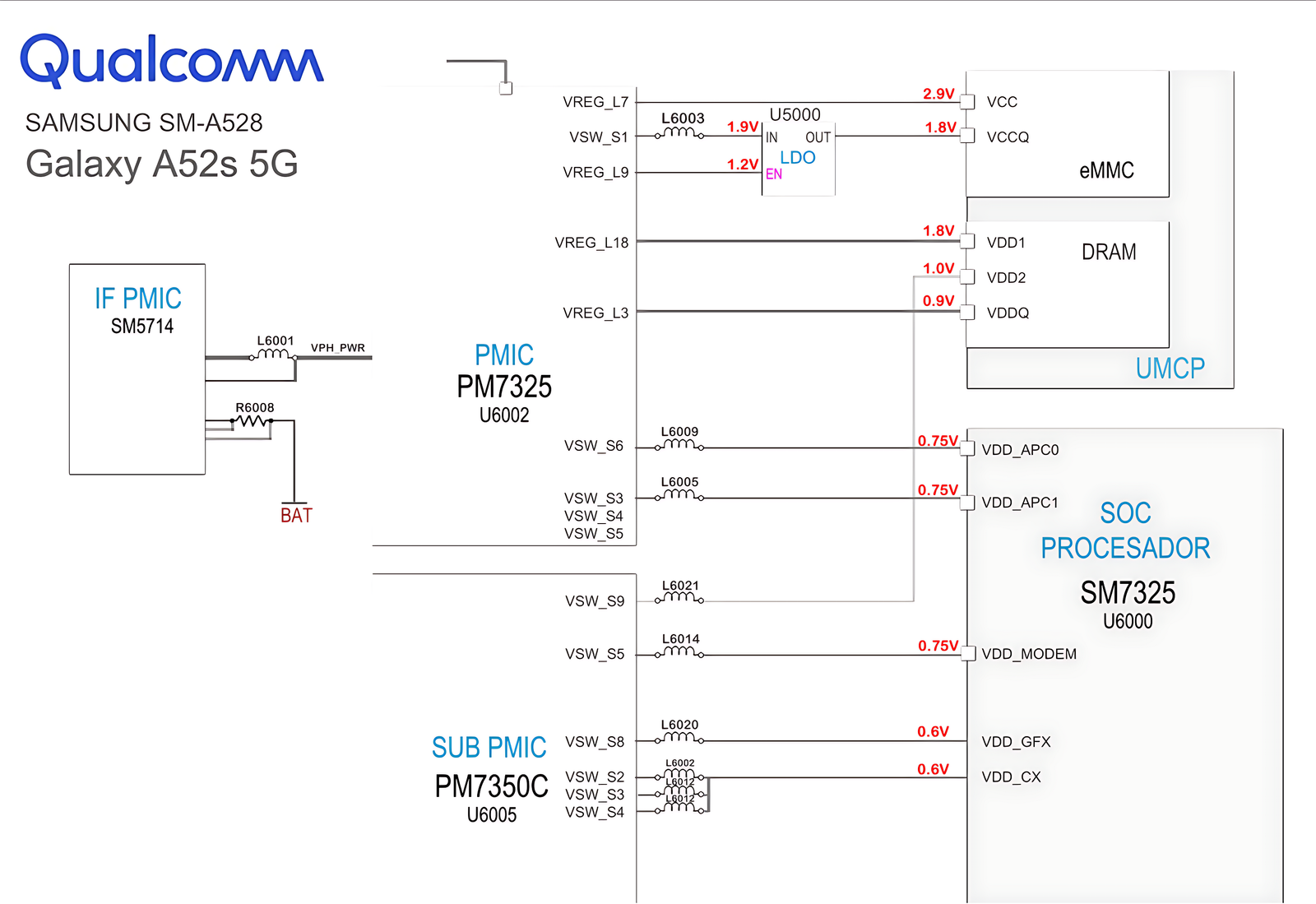

The image above is a detailed circuit diagram showing how the PM7325 chip distributes power within the Galaxy A52s 5G. This is a visual representation of the interconnections between various components inside the device, with the PM7325 at the center of it all.

Key Components and Connections in the Diagram:

• PM7325 PMIC Chip: The heart of the power distribution system, located at the top right of the diagram, is the PM7325 chip. This PMIC connects to all major sections of the phone, delivering the correct voltage to the System on Chip (SOC), DRAM, eMMC storage, and various other components.
• Voltage Regulators (VREG): The PM7325 controls several voltage regulators like VREG_L3, VREG_L9, and VREG_L7. These regulators convert the battery’s voltage to the required levels for different components. For instance:
  • VREG_L7 supplies 2.9V, needed for the SOC processor and other high-performance components.
  • VREG_L9 provides a lower 1.8V to power components like DRAM and other memory units.
  • VREG_L3 outputs 1.0V and 0.9V to further regulate power to lower-powered sections.
• Power Switches (VSW): Alongside the voltage regulators, there are power switches (VSW_S1, VSW_S2, etc.) that help control the flow of power to each section. These components allow the phone to manage its power more effectively, shutting off power to certain sections when they are not in use to conserve energy. For example, VSW_S6 provides 0.75V, which is crucial for regulating power to the SOC.
• LDO (Low Dropout Regulator): The LDO, represented in the diagram as U5000, is a special type of voltage regulator that ensures a stable voltage supply to sensitive components, such as the eMMC storage.

Power Distribution to Different Components

1. System-on-Chip (SOC)

The SOC, or the processor (SM7325), is the heart of the phone, executing tasks like running apps, controlling touch input, processing multimedia, and more. The PM7325 provides a steady power supply to the SOC, ensuring that the processor works efficiently without overheating or drawing excessive power. - The voltage supply for the SOC is typically 1.8V to 2.9V, depending on the processing needs. High-performance tasks such as gaming or multitasking draw more power, and the PMIC adjusts the voltage accordingly.

2. DRAM

The DRAM (dynamic random access memory) in a phone is responsible for short-term memory storage. It handles running applications and stores data that is actively being used. To function correctly, DRAM requires a low, steady voltage (usually around 1.0V to 1.8V). In the A52s 5G, the PM7325 provides the necessary power to the DRAM to keep the device running smoothly and efficiently.

3. eMMC Storage

The eMMC (embedded multimedia card) is the internal storage of the device, where the operating system, apps, and other data are stored. The PM7325 provides a voltage of 1.8V to this component to ensure smooth read and write operations. The eMMC storage needs a stable voltage to prevent data corruption or delays in file access, especially during intensive operations like app installations or media playback.

Importance of Power Efficiency

The efficiency of power distribution is one of the most important aspects of modern smartphones, and the PM7325 is designed with this in mind. By using multiple voltage regulators and power switches, the PM7325 can deliver only the necessary power to each section of the phone, avoiding energy wastage.

Why Power Efficiency Matters:

• Battery Life: A well-managed power system means that less energy is wasted in the form of heat or overuse, leading to longer battery life.
• Thermal Management: Efficient power regulation reduces excess heat generated by high-powered components, improving overall thermal management in the phone. Excessive heat can cause the processor to throttle performance or even lead to hardware failure over time.
• Component Longevity: Components like the SOC, DRAM, and eMMC are sensitive to excessive voltage or temperature. The PMIC ensures that these parts only receive the voltage they need, increasing their longevity and overall reliability.

Conclusion

The PM7325 Power Management IC plays an indispensable role in ensuring the smooth and efficient operation of the Samsung Galaxy A52s 5G. It ensures that the phone's components receive the correct voltages, maintains battery efficiency, and helps keep the device cool during heavy usage.

Through the careful distribution of power, the PM7325 enables the SOC, DRAM, and other parts of the phone to function optimally without compromising on performance or battery life. As smartphone technology continues to advance, the role of PMICs like the PM7325 becomes increasingly crucial in optimizing energy usage and ensuring that devices are both powerful and energy-efficient.

In essence, the PM7325 is the unsung hero that helps deliver the performance and efficiency users expect from modern smartphones, like the Samsung Galaxy A52s 5G.
