Samsung Galaxy A41 (SM-A415) Power Management System: MT6358 PMIC ka Detailed

Samsung Galaxy A41 ek modern smartphone hai jo apne power management ke liye MediaTek ka MT6358 PMIC use karta hai. PMIC, yaani Power Management Integrated Circuit, ek aisi chip hai jo phone ke battery voltage ko regulate karke phone ke har ek component ko sahi voltage aur current provide karti hai. Is article mein hum aapko Galaxy A41 ke power schematic ke baare mein detail mein samjhayenge, taaki aap samajh sakein ki ye power management system kaise kaam karta hai.

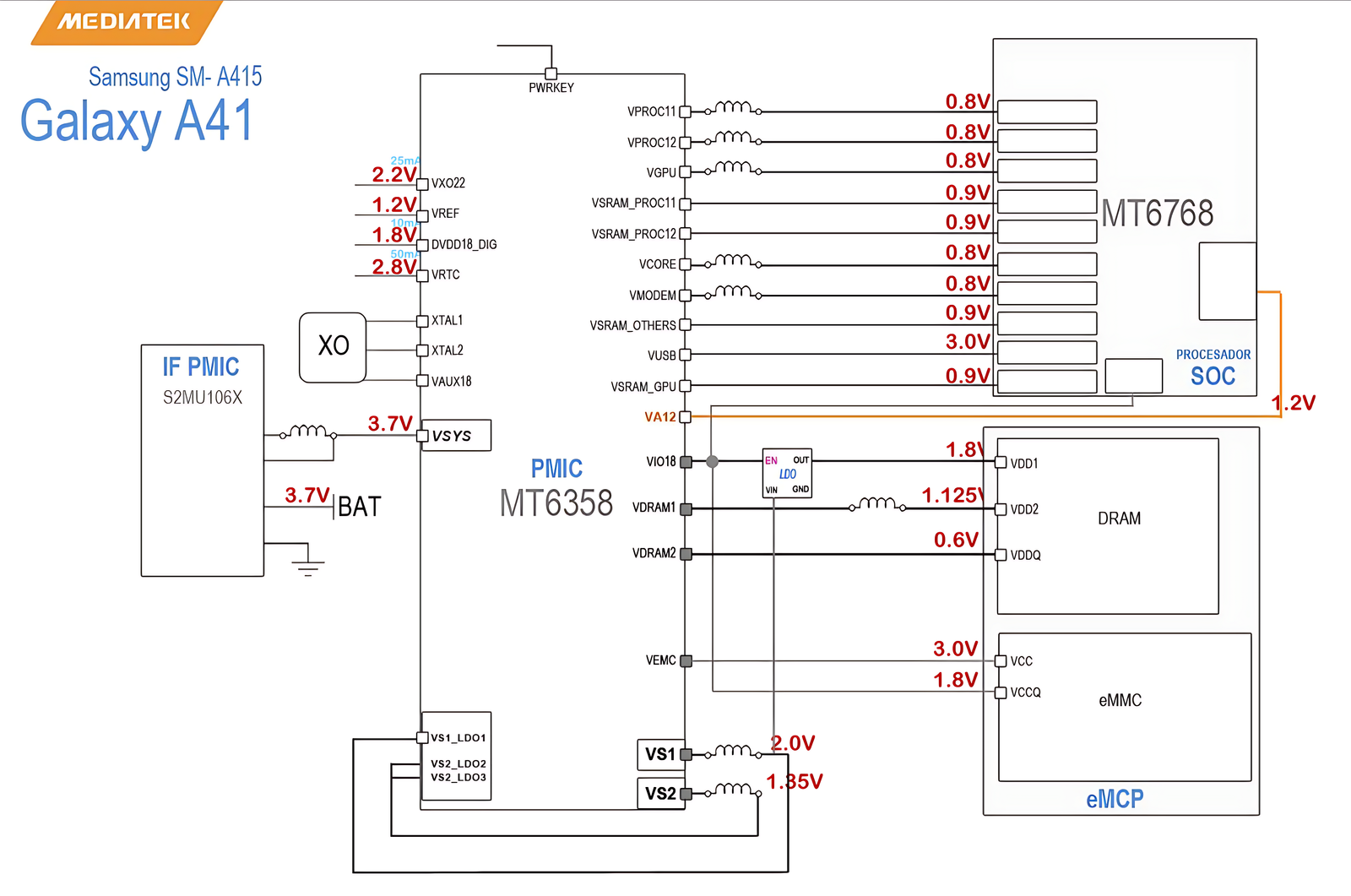

Samsung Galaxy A41 MT6358 Power Management Schematic

1. Battery aur VSYS Rail

Galaxy A41 ki power source ek 3.7 Volt lithium-ion battery hai. Ye battery se power MT6358 PMIC mein jata hai jahan se phone ka main system power rail VSYS (3.7V) generate hota hai. VSYS rail sabhi internal components ko unke required voltage level tak power supply karta hai. Battery voltage PMIC ke input par aane ke baad, wo is voltage ko multiple regulated voltages mein convert karta hai.

2. IF PMIC (S2MU106X)

Schematic mein ek doosra PMIC dikhaya gaya hai, jo hai S2MU106X. Ye PMIC bhi battery se power lekar kuch specific components ke liye voltage regulation karta hai. Iska role phone ke alag modules ke liye stable power supply provide karna hai, jisse phone ki performance aur stability maintain ho.

3. MT6358 ke Voltage Rails

MT6358 PMIC ke andar kai voltage regulators hote hain, jinhe hum voltage rails kehte hain. Har rail ek fixed voltage output deta hai jo phone ke alag components ko supply kiya jata hai. Jaise ki:

  • VX022 (2.2V): Sensors ya auxiliary circuits ke liye.
  • VREF (1.2V): Reference voltage ke liye.
  • DVDD18_DIG (1.8V): Digital logic circuits ke liye.
  • VRTC (2.8V): Real-time clock ke liye.
  • VSYS (3.7V): System ke main power rail.
  • VS1_LDO1 (2.0V) aur VS2_LDO2 (1.85V): Specific LDO outputs.

4. Processor (MT6768 SoC) Power Supply

Phone ka heart, yaani processor, ko accurate aur stable voltage supply dena bahut zaroori hota hai. MT6768 SoC ko multiple voltage rails diye jate hain jisme:

  • VPROC11 aur VPROC12 (0.8V): Processor cores ke liye.
  • VGPU (0.8V): Graphics processing ke liye.
  • VSRAM_PROC11, VSRAM_PROC12 (0.9V): Processor SRAM.
  • VCORE (0.8V): Core voltage supply.
  • VMODEM (0.8V): Modem power supply.
  • VSRAM_OTHERS, VSRAM_GPU (0.9V): SRAM for GPU aur other blocks.
  • VUSB (3.0V): USB interface power supply.

Ye voltages PMIC ke dwara precisely regulate kiye jate hain, jisse SoC stable aur power efficient rahe.

5. DRAM aur eMCP Power Supply

Memory aur storage modules ke liye bhi specific voltage rails hote hain:

  • DRAM: VDD1 (1.8V), VDD2 (1.125V), VDDQ (0.6V)
  • eMCP: VCC (3.0V), VCCQ (1.8V)

In voltages ka kaam memory ko stable power dena hai, taaki data ko reliably access kiya ja sake.

6. Voltage Regulators aur LDO

PMIC mein LDOs (Low Dropout Regulators) hote hain jo high voltage ko stable low voltage mein convert karte hain. Jaise schematic mein 1.8V LDO dikhaya gaya hai, jo sensitive components ko stable voltage provide karta hai.

7. VS1 aur VS2 Rails

VS1 rail 2.0V voltage provide karta hai, jabki VS2 rail 1.85V voltage provide karta hai. Ye rails alag circuits ke liye power supply ki zimmedari lete hain.

8. Power Flow ka Summary

Phone ki battery se 3.7V power MT6358 PMIC ko milta hai. PMIC is voltage ko multiple regulated voltages mein convert karta hai jise SoC, memory, modem, GPU, USB, aur baaki components ko supply kiya jata hai. Isse phone ki performance achhi rehti hai aur battery efficiently use hoti hai.

9. MT6358 ka Mahatva

MT6358 PMIC ki wajah se phone ki battery life better hoti hai. Ye chip over-voltage se protection deti hai aur components ko required power supply karti hai. Isse phone reliable, stable aur energy efficient banta hai.

10. Technical Notes

Har voltage line ke saath current rating bhi diya gaya hai, jaise VX022 - 25mA, VREF - 10mA, DVDD18_DIG - 50mA. Ye ensure karta hai ki har component ko uske hisaab se sahi current mile.

Conclusion

Samsung Galaxy A41 ka power management system MT6358 PMIC ke dwara efficient tarike se chalaya jata hai. Is schematic se pata chalta hai ki har component ko unke voltage aur current ke requirement ke hisaab se power supply kiya jata hai, jisse phone ki performance aur battery life dono optimized rahte hain. Agar aap power management ya kisi aur technical aspect par aur jankari chahte hain toh aap mujhe puch sakte hain.
