Convert Digital Mic to Universal Mic
(Supported Models: MK27, M9750, BSE0505)
Digital Microphone to Analog Microphone Conversion Guide

Modern smartphones commonly use digital microphones (DMIC), but during repair, testing, or replacement, a universal / analog microphone is often easier to source.
This guide explains how a digital mic line can be adapted to work with a universal microphone using a simple resistor-based method, as shown in the reference image.

Commonly Used Universal Mic Models

This method is tested and commonly used with the following microphone models:

MK27

M9750

BSE0505

These mic types are widely available and suitable for temporary or functional audio restoration.

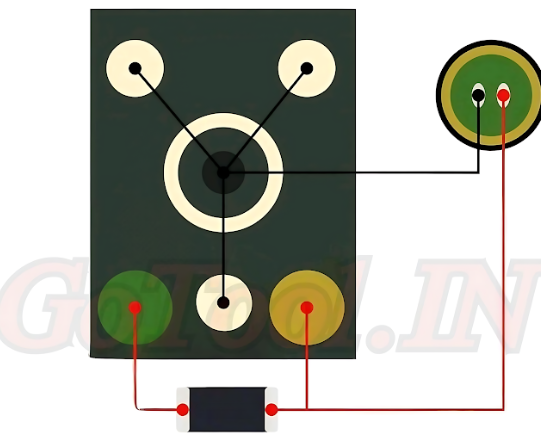

Diagram Explanation

The image shows three different PCB layouts, but the connection logic remains the same in all cases.

Wire color reference:

Red (+) → Mic power / bias line

Black (GND) → Ground

Yellow (D+) → Signal line

A resistor between 1.5KΩ and 4.7KΩ is placed in series on the signal line to stabilize audio input.

Required Parts

Universal / Analog Microphone (MK27 / M9750 / BSE0505)

Resistor: 1.5KΩ – 4.7KΩ

Jumper wires

Fine-tip soldering iron

Multimeter (recommended)

Connection Method (Step-by-Step)

Ground (GND – Black wire)
Connect to the negative terminal of the universal mic.

Signal Line (D+ – Yellow wire)
Connect to the mic signal terminal through a 1.5K–4.7K resistor.

Power / Bias (+ – Red wire)
Connect to the microphone power line on the PCB.

Double-check:

No short circuits

Correct polarity

Clean solder joints

Why Is the Resistor Important?

Controls signal flow

Reduces noise and distortion

Protects the audio IC

Helps digital mic lines accept analog input

Skipping the resistor may result in no sound, noise, or IC damage.

When Is This Method Useful?

Original digital mic is damaged

Replacement DMIC is unavailable

Temporary audio testing

Troubleshooting microphone issues

Budget repair solutions

Limitations

Not a factory-level permanent solution

Audio quality may be slightly reduced

Not guaranteed to work on all smartphone models

Technician Notes ⚠️

Use low heat while soldering

Avoid long jumper wires

Always test audio recording and calls after repair

SEO Keywords (Naturally Used)

Convert digital mic to universal mic

Universal microphone repair method

Digital mic replacement solution

Mobile microphone jumper trick

Analog mic in digital circuit

Disclaimer

This content is provided for educational and professional repair purposes only.
Actual implementation depends on device design and technician expertise.
